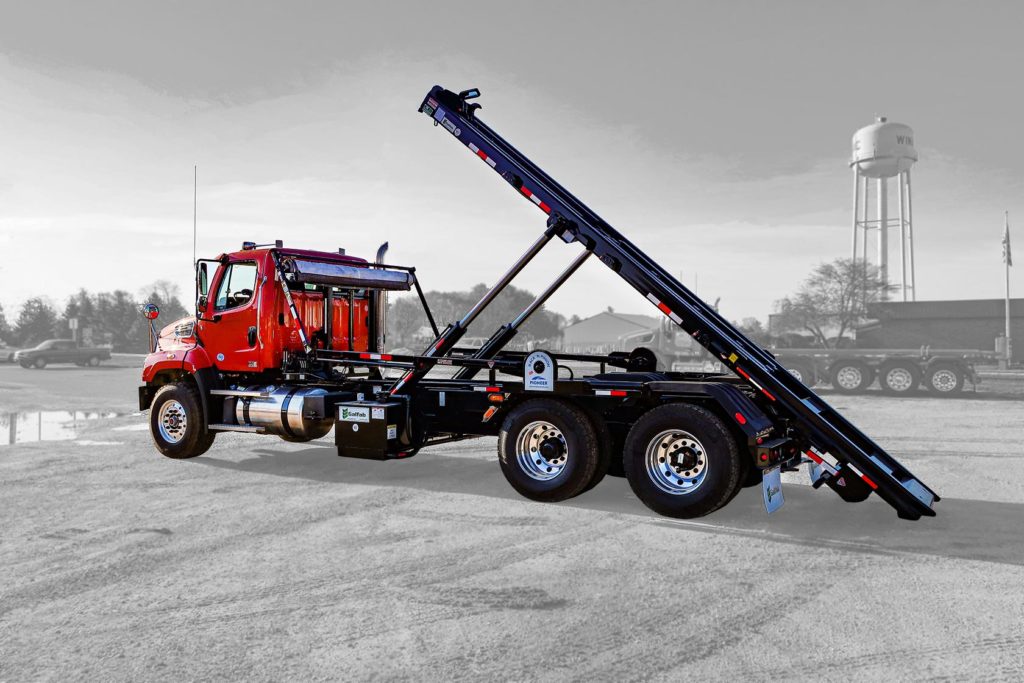

Galfab Outside Rail Roll-Off Hoist (OR Series)

The Outside Rail roll-off hoist is the most common used hoist in the industry today. Galfab offer this hoist with a 8” mainframe and 2” sub frame or the very popular 10” sub frameless hoist.

  • 8″ x 4 x 1/2″ Main Frame Tube
  • 3″ x 2″ x 1/4″ Subframe
  • 2 1/2″ Diameter Rear Hinge
  • All Working Points Greaseable
  • Pintle Ready Apron
  • Auto Fold Forward DOT Bumper
  • 1″ Spring Loaded Container Locks
  • 2 1/2″ Diameter Lift Cylinder Shafts
  • Interchangeable 10″ Vertical and Horizontal Sheaves
  • 3/8 inch x 3-inch Winch Cylinder Rod Covers
  • 6 Inboard and Outboard Supported Outside Rollers
  • Container Long Sill Supports on Rear of Hoist Mainframe
  • 48 Gallon Oil Reservoir with Sight and Temperature Gauge
  • 25 Micron Filtration
  • Inside and Outside Controls
  • LED Lighting System
  • Choice of Forward or Reverse Mount Single-Stage or Telescopic Lift Cylinders
  • 7/8” Cable with Heavy Duty Swivel Eye Hook
  • Galfab Auto-fold DOT Bumper
  • 48-Degree Dump Angle on all Models
  • 2 Minute Loading Cycle Time* Keeping your Drivers on the Road
  • Hoist Up Alarm
  • Backup Alarm
  • Behind Cab and Oversize Oil Tanks
  • Tool Boxes
  • Auxiliary Stops
  • Poly or Steel Fenders
  • Aluminum Fenders
  • Tarping Systems
  • “The Hooker” Hold On System
  • Ratchet Tie Down Straps
  • Pintle Hook
  • Front Mount Pump
  • PTO
  • Drop Shaft
  • On Board Scale Systems
  • Work Lights
  • Rear View Camera Systems
  • Integrated hydraulics can be used, if hydraulic tarping is used



Model Capacity CA CA with tarp Length Dump Agle Up (sec)* Down (sec)* On (sec)* Off (sec)* Lift Cylinder Winch Cylinder Container Length ft Apx Weight lbs
OR60174S072 60,000 174″ 186″ 23’3″ 48° 27 15 41 28 6″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OR60174S072R 60,000 174″ 186″ 23’3″ 48° 27 15 41 28 6″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OR60174T121 60,000 174″ 186″ 23’3″ 48° 35 29 41 28 6″-5″-4″ x 121″ DAT 7″ x 4″ x 79.5″ DA 18′-22′ 7225
OR75174S072F7 75,000 174″ 186″ 23’3″ 48° 37 23 41 28 7″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OR75174S072R7 75,000 174″ 186″ 23’3″ 48° 37 23 41 28 7″ x 4″ x 72″ DA 7″ x 4″ x 79.5″ DA 18′-22′ 7550
OR75174T121 75,000 174″ 186″ 23’3″ 48° 35 29 41 28 6″-5″-4″ x 121″ DAT 7″ x 4″ x 79.5″ DA 18′-22′ 7350
OR60194S072 60,000 194″ 206″ 24’11” 48° 27 15 46 31 6″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OR60194S072R 60,000 194″ 206″ 24’11” 48° 27 15 46 31 6″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OR60194T121 60,000 194″ 206″ 24’11” 48° 35 29 46 31 6″-5″-4″ x 121″ DAT 7″ x 4″ x 89.5″ DA 20′-24′ 8075
OR75194S072F7 75,000 194″ 206″ 24’11” 48° 37 23 46 31 7″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OR75194S072R7 75,000 194″ 206″ 24’11” 48° 37 23 46 31 7″ x 4″ x 72″ DA 7″ x 4″ x 89.5″ DA 20′-24′ 7850
OR75194T121 75,000 194″ 206″ 24’11” 48° 35 29 46 31 6″-5″-4″ x 121″ DAT 7″ x 4″ x 89.5″ DA 20′-24′ 8075

* Cycle Times are Factory developed and controlled by PTO output, oil viscosity, human and mechanical efficiency, and may vary accordingly.

CAUTION: This Equipment Should be Operated by Properly Trained Personnel. Improper Use, Misuse, or Lack of Maintenance Could Cause Injury to Persons or Property. Photos used in this brochure are illustrative only. We reserve the right to make changes at any time without notice. Information contained within this literature is believed to be the most accurate available at the time of printing.
