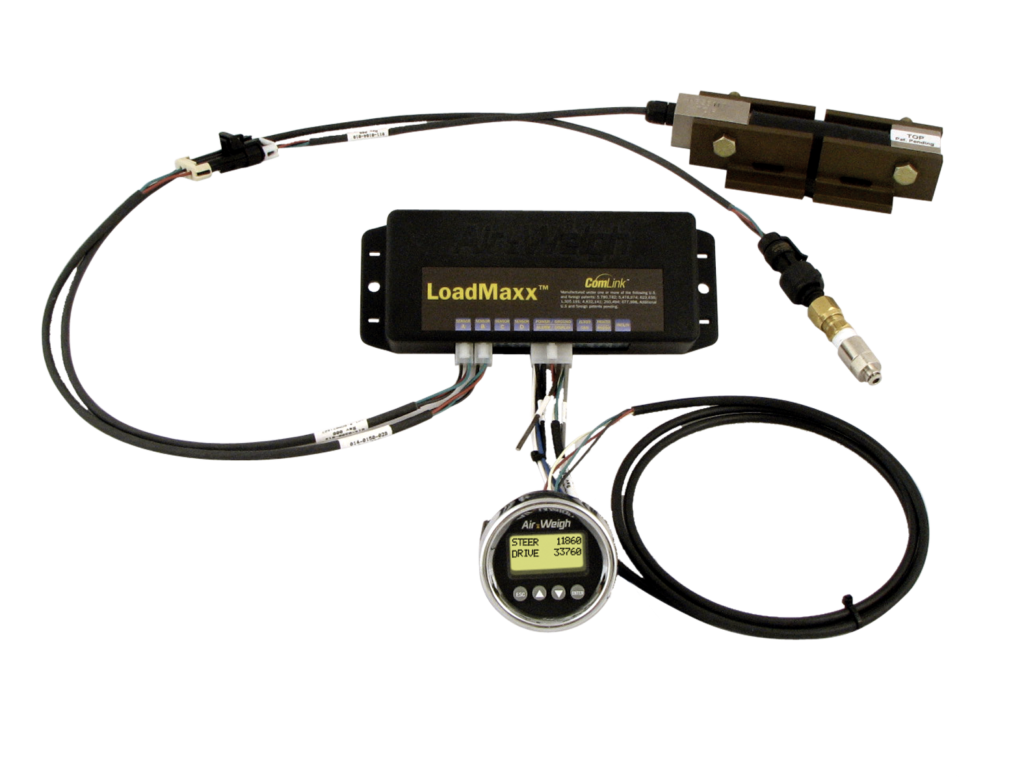

Air-Weigh LoadMaxx


Air-Weigh scales for Vac and Hydro Excavation Trucks put an end to the guesswork for both the driver and the home office. Our truck scales come with all of the features you need to manage the weights of your entire fleet easily.

  • Measures steer, drive, GVW, and Net Payload
  • Supports air ride and most mechanical suspensions
  • Dual point calibration – empty and fully loaded
  • Pin protected settings
  • Alarm Outputs: two, both with warning and overweight thresholds
  • Temperature and Altitude Compensation
  • Optional printer for instant weight receipts (RS-232)

Both the LoadMaxx and QuickLoad scales provide all of the features required to ensure a driver does not leave a job with an over or under weight vehicle. However, LoadMaxx provides advanced communication features with third party on-board computer integration and Bluetooth to display weights via the LoadMaxx app. If you are managing a large fleet of HydroVacs, LoadMaxx will provide the connectivity and accurate information you need to manage your fleet effectively.

Loadmaxx Truck Features

  • Measures steer, drive, GVW, and Net Payload
  • Supports air ride and most mechanical suspensions
  • Dual point calibration – empty and fully loaded
  • Pin protected settings
  • Alarm Outputs: Two, both with warning and overweight thresholds
  • Temperature and Altitude Compensation
  • Optional printer for instant weight receipts (RS-232)
  • Third-party onboard computer integration*
  • Bluetooth pairs scale with LoadMaxx App*

(Advanced communication features included only with LoadMaxx)

Quickload Truck Features

  • Measures steer, drive, GVW, and Net Payload
  • Supports air ride and most mechanical suspensions
  • Dual point calibration – empty and fully loaded
  • Pin protected settings
  • Alarm Outputs: Two, both with warning and overweight thresholds
  • Temperature and Altitude Compensation

Loadmaxx

  • Accurate on-the-ground weights to within 1% (air ride) or 3% (mechanical) of a DOT certified scale
  • Operating Temperatures: 0 deg to +50 deg C; 32 deg to + 122 deg F
  • J1708 Interface
  • J1939/CAN Interface
  • Inclinometer Option
  • Units: Pounds or Kilograms; user selectable
  • Power: 9 to 32 V dc
  • Languages: English, Spanish, French and German
  • Installation option: In-dash or mounting pod

Quickload

  • Accurate on-the-ground weights to within 1% (air ride) or 3% (mechanical) of a DOT certified scale
  • Operating Temperatures: 0 deg to +50 deg C; 32 deg to + 122 deg F
  • Inclinometer Option
  • Units: Pounds or Kilograms; user selectable
  • Power: 9 to 32 V dc
  • Languages: English, Spanish, French and German
  • Installation option: In-dash or mounting pod
