Galbreath Outside Rail (OR)
- Types:
- Cable Hoists
- Roll-Off Equipment
Galbreath Outside Rail Hoists are among the most popular and versatile in the waste industry.
The Outside Rail hoist (OR) is the industry standard for hauling outside rail containers.
- Dual Outboard Mounted Lift Cylinders (all U-series & AH-series models)
- Dual In-board mounted lift cylinders (all AF/AFX models)
- Pintle hitch adaptable rear apron
- Split light bumpers
- Heavy duty rear hinge
- Backup alarm
- Hoist maintenance props
- Tarper / valve mounting platform
- Behind the cab oil reservoir
- Return oil filter / 3 microns
- Stationary rear hold down
- Air assist auto folding ICC bumper
- Hydraulic tube plumbing in frame
- LED – DOT stop, turn and side marker lights
- Hoist up alarm with signal light
- Single cylinder reeving system
- Mount plates and mounting bolts
- Hydraulic hose plumbing at control valve
- Direct mount pump
- Cable end holder
- Sealed wiring harness
- Manual control valve levers (2 up to 7 when applicable)
- Inside air controls
- Wear strips on top of rails (standard on 75k lb. models and all AH-series hoists)
- Pioneer® tarping systems
- Pintle hooks and towing applications
- Auxiliary hydraulic hook ups and wet kits
- Outside rail skid plates
- Outboard supported side rollers (standard on 75k lb. and AH-series models)
- Toolboxes
- Fenders
- Rear window screen protection
- Lift axles
- Auxiliary container stops and rear hold downs
- Various cable ends
- Safety and additional LED work lights
- Speed & RPM limiting parameters
- Scale systems
- Backup camera systems
- Pumps and PTO’s
| Model | Description |
|---|---|
| U2-EX-119 | SINGLE AXLE–25k–119 MODELS–Extendable Tail 60″, Outside Rail |
| U2-OR-138 | SINGLE AXLE–25k–138 MODELS–Outside Rollers, Outside Rail |
| U2-EX-138 | SINGLE AXLE–25k–138 MODELS–Extendable Tail 60″, Outside Rail |
| U3-OR-111 | SINGLE AXLE–30k–111 MODELS–Outside Rollers, Outside Rail |
| U3-OR-156 | SINGLE AXLE–30k–156 MODELS–Outside Rollers, Outside Rail |
| U3-OR-178 | SINGLE AXLE–30k–178 MODELS–Outside Rollers, Outside Rail |
| U3-IO-156 | SINGLE AXLE–30k–156 MODELS–Inside/Outside Rail |
| U3-EX-156 | SINGLE AXLE–30k–156 MODELS–Extendable Tail 60″, Outside Rail |
| U3-EX-178 | SINGLE AXLE–30k–178 MODELS–Extendable Tail 60″, Outside Rail |
| U3-OX-178 | SINGLE AXLE–30k–178 MODELS–Extendable Tail/Long Tail 48″, Outside Rail |
| U5-EX/HH-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 80″, Narrow Outside Rail 35″, Combo Front Stops |
| U5-EX/HH-194 | TANDEM AXLE–60k–194 MODELS–Extendable Tail 80″, Narrow Outside Rail 35″, Combo Front Stops |
| U4-OR-156 | TANDEM AXLE–40k–156 MODELS–Outside Rollers, Outside Rail |
| U4-OR-174 | TANDEM AXLE–40k–174 MODELS–Outside Rollers, Outside Rail |
| U4-EX-156 | TANDEM AXLE–40k–156 MODELS–Extendable Tail 80″, Outside Rail |
| U4-EX-174 | TANDEM AXLE–40k–174 MODELS–Extendable Tail 80″, Outside Rail |
| U5-OR-156 | TANDEM AXLE–60k–156 MODELS–Outside Rollers, Outside Rail |
| U5-OR-174 | TANDEM AXLE–60k–174 MODELS–Outside Rollers, Outside Rail |
| U5-OR-194 | TANDEM AXLE–60k–194 MODELS–Outside Rollers, Outside Rail |
| U5-OR/HH-174 | TANDEM AXLE–60k–174 MODELS–Outside Rollers, Narrow Outside Rail 35″ w/ Combo Front Stops for Deadlift |
| U5-OR/HH-194 | TANDEM AXLE–60k–194 MODELS–Outside Rollers, Narrow Outside Rail 35″ w/ Combo Front Stops for Deadlift |
| U5-IO-174 | TANDEM AXLE–60k–174 MODELS–Inside/Outside Rail |
| U5-IO-194 | TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail |
| U5-IR-174 | TANDEM AXLE–60k–174 MODELS–8″ Main Frame 2″ Sub-Frame – Inside Rail Only, No Side Rollers |
| U5-IX-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside Rollers, Inside/Outside Rail |
| U5-SI-174 | TANDEM AXLE–60k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″ |
| U5-SI-186 | TANDEM AXLE–60k–186 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″ |
| U5-SI-194 | TANDEM AXLE–60k–194 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″ |
| U5-EX-156 | TANDEM AXLE–60k–156 MODELS–Extendable Tail 80″, Outside Rail |
| U5-EX-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 80″, Outside Rail |
| U5-EX-194 | TANDEM AXLE–60k–194 MODELS–Extendable Tail 80″, Outside Rail |
| U5-OX-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Outside Rail |
| U5-OX-194 | TANDEM AXLE–60k–194 MODELS–Extendable Tail/Long Tail 48″, Outside Rail |
| U5-XI-174-10 | TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough |
| U5-OR-174-10 | TANDEM AXLE–60k–174 MODELS–Outside Rollers, Outside Rail |
| U5-OR-194-10 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame – Outside Rollers, Outside Rail |
| U5-IO-174-10 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame – Inside/Outside Rail |
| U5-IO-194-10 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame – Inside/Outside Rail |
| U5-IR-174-10 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame – Inside Rail Only |
| U5-IX-174-10 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside Rollers, Inside/Outside Rail |
| U5-EX-174-10 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame – Extendable Tail 80″, Outside Rail |
| U5-EX-194-10 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame, Extendable Tail 80″, Outside Rail |
| U5-OX-174-10 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame, Extendable Tail/Long Tail 48″, Outside Rail |
| U5-OX-194-10 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame – Extendable Tail/Long Tail 48″, Outside Rail |
| U5-XI-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough |
| U5-XI-174-10 | TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Inside Rail – 3/4 Trough |
| UT-OR-174 | TANDEM AXLE–60k–174 MODELS–Outside Rollers, Outside Rail -Telescopic Lift Cylinders |
| UT-OR-194 | TANDEM AXLE–60k–194 MODELS–Outside Rollers, Outside Rail -Telescopic Lift Cylinders |
| UT-OR/HH-174 | TANDEM AXLE–60k–174 MODELS–Narrow Outside Rail 35″, Combo Front Stops -Telescopic Lift Cylinders |
| UT-OR/HH-194 | TANDEM AXLE–60k–194 MODELS–Narrow Outside Rail 35″, Combo Front Stops -Telescopic Lift Cylinders |
| UT-IO-174 | TANDEM AXLE–60k–174 MODELS–Inside/Outside Rail-Telescopic Lift Cylinders |
| UT-IO-194 | TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail-Telescopic Lift Cylinders |
| UT-EX-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 80″, Outside Rail |
| UT-EX-194 | TANDEM AXLE–60k–194 MODELS–Extendable Tail 80″, Outside Rail-Telescopic Lift Cylinders |
| UT-EX/HH-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail 80″, Narrow Outside Rail 35″, Combo Front Stops -Telescopic Lift Cylinders |
| UT-OX-174 | TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 48″, Outside Rail–Telescopic Lift Cylinders |
| UT-OX-194 | TANDEM AXLE–60k–194 MODELS–Extendable Tail/Long Tail 48″, Outside Rail–Telescopic Lift Cylinders |

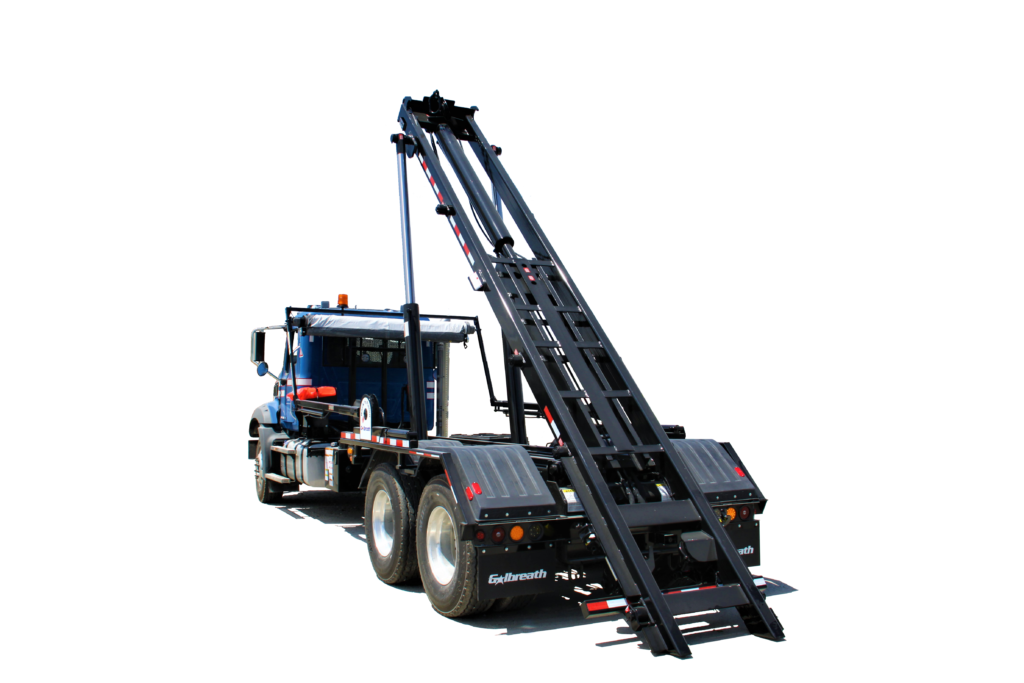

| U5WC-OR-174 | TANDEM AXLE–30k/60k–174 MODELS–West Coast Unit–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail |
| U5WC-OR-186 | TANDEM AXLE–30k/60k–186 MODELS–West Coast Unit–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail |
| U5WC-OR-194 | TANDEM AXLE–30k/60k–194 MODELS–West Coast Unit–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail |
| UM-OR-194 | TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Outside Rollers, Outside Rail |
| UM-IO-194 | TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Inside & Outside Rollers, Inside/Outside Rail |
| UM-SI-194 | TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Inside & Outside Rollers, Narrow Inside/Outside Rail 35″ & Deadlift |
| UM-EX-194 | TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Extendable Tail 80″, Outside Rollers, Outside Rail |
| UM-OX-194 | TANDEM AXLE–60k–194 MODELS–Michigan 9′ Spread Lift Axle–Extendable Tail/Long Tail 48″, Outside Rail |
| C5-OR-174 | TANDEM AXLE–60k–174 MODELS–Canada Unit–10″ Main Frame w/ 3″ Sub-Frame, Outside Rollers, Outside Rail–Ontario Front Stops, Full Length Rear Wing Plates, Rear Chain Hold Downs, Oil Sample Port |
| C5-OR-186 | TANDEM AXLE–60k–186 MODELS–Canada Unit–10″ Main Frame w/ 3″ Sub-Frame, Outside Rollers, Outside Rail–Ontario Front Stops, Full Length Rear Wing Plates, Rear Chain Hold Downs, Oil Sample Port |
| C5-OR-194 | TANDEM AXLE–60k–194 MODELS–Canada Unit–10″ Main Frame w/ 3″ Sub-Frame, Outside Rollers, Outside Rail–Ontario Front Stops, Full Length Rear Wing Plates, Rear Chain Hold Downs, Oil Sample Port |
| C5-OR-206 | TANDEM AXLE–60k–206 MODELS–Canada Unit–10″ Main Frame w/ 3″ Sub-Frame, Outside Rollers, Outside Rail–Ontario Front Stops, Full Length Rear Wing Plates, Rear Chain Hold Downs, Oil Sample Port |
| UC-OR-22 | TANDEM AXLE–60k–174 MODELS–Canada Unit–12″ Main Frame, Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Rod Type Lift Cylinders |
| UC-OR-24 | TANDEM AXLE–60k–194 MODELS–Canada Unit–12″ Main Frame, Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Telescopic Lift Cylinders |
| UC-IO-22 | TANDEM AXLE–60k–174 MODELS–Canada Unit–12″ Main Frame, Inside/Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Rod Type Lift Cylinders |
| UC-IO-24 | TANDEM AXLE–60k–194 MODELS–Canada Unit–12″ Main Frame, Inside/Outside Rail w/ Dock Push Off–Telescopic Winch Cylinder – Telescopic Lift Cylinders |

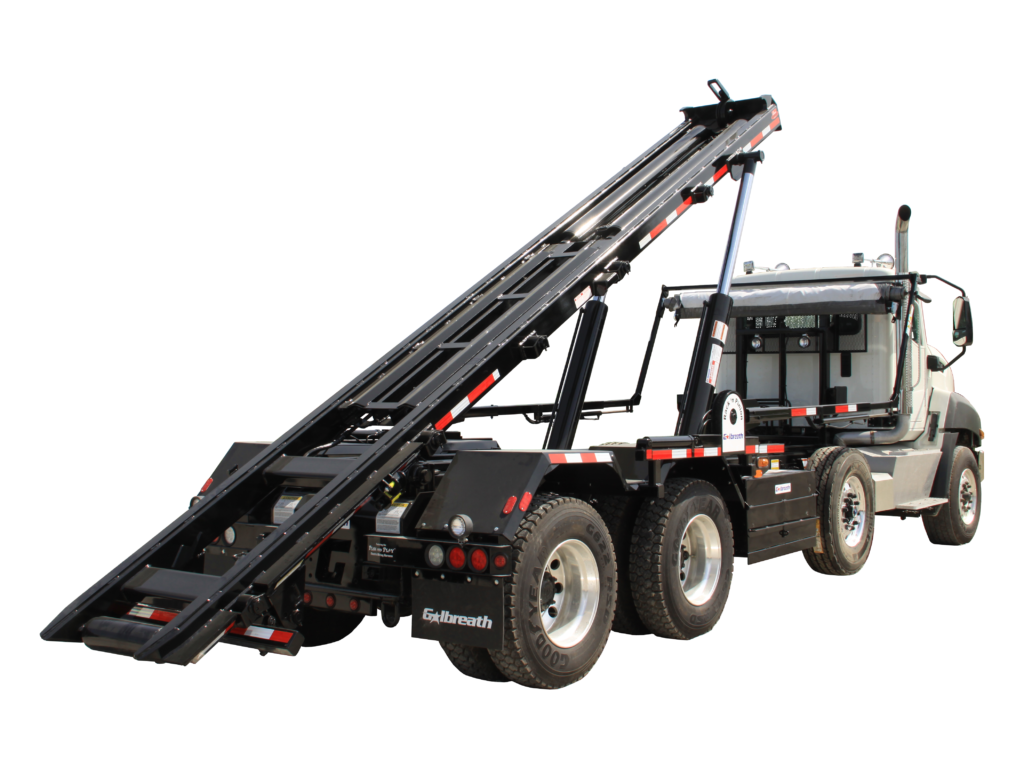

| U75-OR-174 | TANDEM AXLE–75k–174 MODELS–Outside Rollers, Outside Rail |
| U75-OR-194 | TANDEM AXLE–75k–194 MODELS–Outside Rollers, Outside Rail |
| U75-IO-174 | TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail |
| U75-IO-194 | TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail |
| U75-EX-174 | TANDEM AXLE–75k–174 MODELS–Extendable Tail 80″, Outside Rail |
| U75-EX-194 | TANDEM AXLE–75k–194 MODELS–Extendable Tail 80″, Outside Rail |
| U75-OX-174 | TANDEM AXLE–75k–194 MODELS–Extendable Tail/Long Tail 48″, Outside Rail |
| U75-OX-194 | TANDEM AXLE–75k–194 MODELS–Extendable Tail/Long Tail 48″, Outside Rail |
| U75T-OR-174 | TANDEM AXLE–75k–174 MODELS–Outside Rollers, Outside Rail–Telescopic Lift Cylinders |
| U75T-OR-194 | TANDEM AXLE–75k–194 MODELS–Outside Rollers, Outside Rail–Telescopic Lift Cylinders |
| U75T-EX-174 | TANDEM AXLE–75k–174 MODELS–Extendable Tail 80″, Outside Rail–Telescopic Lift Cylinders |
| U75T-EX-194 | TANDEM AXLE–75k–194 MODELS–Extendable Tail 80″, Outside Rail–Telescopic Lift Cylinders |
| U80-OR-174 | TANDEM AXLE–80k–174 MODELS–Outside Rollers, Outside Rail |
| U80-OR-194 | TANDEM AXLE–80k–194 MODELS–Outside Rollers, Outside Rail |
| U80T-OR-194 | TANDEM AXLE–80k–194 MODELS–Outside Rollers, Outside Rail–Telescopic Lift Cylinders |
| UH-OR-174 | HEAVY DUTY–TANDEM AXLE–75k–174 MODELS–Outside Rollers, Outside Rail |
| UH-OR-194 | HEAVY DUTY–TANDEM AXLE–75k–194 MODELS–Outside Rollers, Outside Rail |

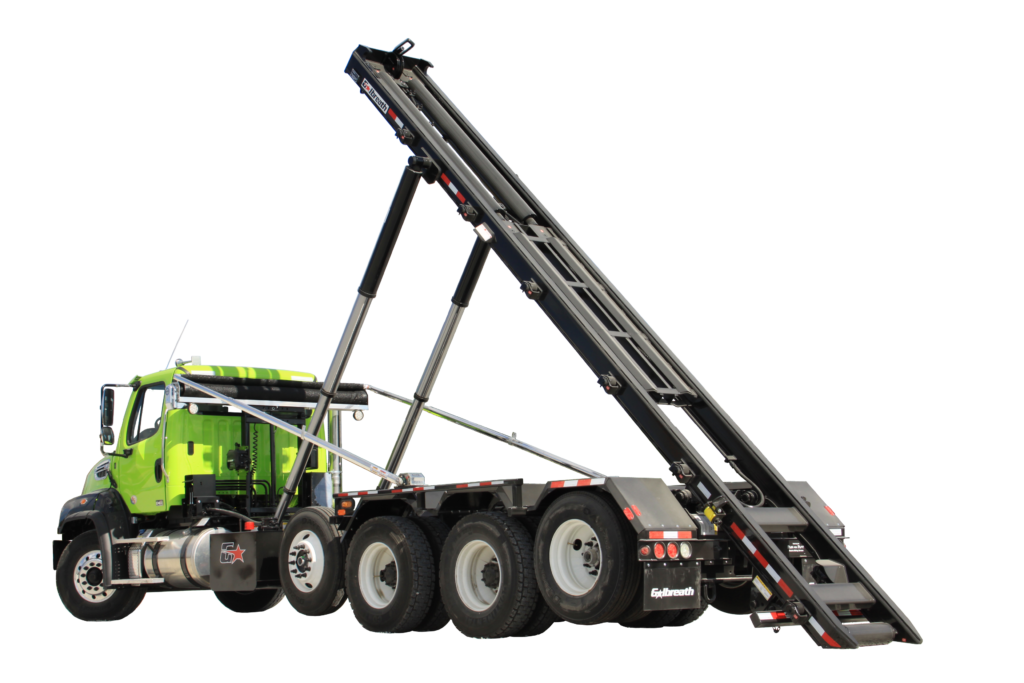

| UH-LTOR-176 | HEAVY DUTY–TANDEM AXLE–75k–176 MODELS–Long Box, Outside Rollers, Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axle *Required* |
| UH-LTOR-195 | HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Outside Rollers, Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axles *Required* |
| UH-L2TOR-195 | HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Outside Rollers, Outside Rail–(2) 13k Lift Axles & 20k Rear Mounted Lift Axle *Required* |
| UH-IO-174 | HEAVY DUTY–TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail – Inside Rollers |
| UH-IO-194 | HEAVY DUTY–TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail – Inside Rollers |
| UH-LTIO-176 | HEAVY DUTY–TANDEM AXLE–75k–176 MODELS–Long Box, Inside/Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axles *Required* |
| UH-LTIO-195 | HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Inside/Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axles *Required* |
| UH-L2TIO-195 | HEAVY DUTY–TANDEM AXLE–75k–195 MODELS–Long Box, Inside/Outside Rail–(2) 13k Lift Axles & 20k Rear Mounted Lift Axle *Required* |
| UH10-LTOR-176 | HEAVY DUTY–TANDEM AXLE–75k–176 MODELS–10″ Main Frame – Long Box, Outside Rollers, Outside Rail–13k Lift Axle & 20k Rear Mounted Lift Axle *Required* |
| AH60-OR-08-22 | TANDEM AXLE–60k–174 MODELS–(Accurate Style Cable Hoist) 8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail |
| AH60-OR-08-24 | TANDEM AXLE–60k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail |
| AH60-OR-10-22 | TANDEM AXLE–60k–174 MODELS–(Accurate Style Cable Hoist) 10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail |
| AH60-OR-10-24 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail |
| AH60-IO-08-22 | TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail |
| AH60-IO-08-24 | TANDEM AXLE–60k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail |
| AH60-IO-10-22 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail |
| AH60-IO-10-24 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail |
| AH60-EX-08-22 | TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH60-EX-08-24 | TANDEM AXLE–60k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH60-EX-10-22 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH60-EX-10-24 | TANDEM AXLE–60k–194 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH60T-OR-08-22 | TANDEM AXLE–60k–174 MODELS–(Accurate Style Cable Hoist) 8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail – Telescopic Lift Cylinders |
| AH60T-OR-10-22 | TANDEM AXLE–60k–174 MODELS–(Accurate Style Cable Hoist) 10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail – Telescopic Lift Cylinders |
| AH60T-IO-08-22 | TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail – Telescopic Lift Cylinders |
| AH60T-IO-10-22 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail – Telescopic Lift Cylinders |
| AH60T-EX-08-22 | TANDEM AXLE–60k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail – Telescopic Lift Cylinders |
| AH60T-EX-10-22 | TANDEM AXLE–60k–174 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail 80″, Outside Rail – Telescopic Lift Cylinders |
| AH75-OR-08-22 | TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail |
| AH75-OR-08-24 | TANDEM AXLE–75k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail |
| AH75-OR-10-22 | TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail |
| AH75-OR-10-24 | TANDEM AXLE–75k–194 MODELS–10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail |
| AH75-IO-08-22 | TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail |
| AH75-IO-08-24 | TANDEM AXLE–75k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Inside/Outside Rail |
| AH75-IO-10-22 | TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail |
| AH75-IO-10-24 | TANDEM AXLE–75k–194 MODELS–10″ Main Frame; No Sub-Frame–Inside/Outside Rail |
| AH75-EX-08-22 | TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH75-EX-08-24 | TANDEM AXLE–75k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH75-EX-10-22 | TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH75-EX-10-24 | TANDEM AXLE–75k–194 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail 80″, Outside Rail |
| AH75-OX-08-22 | TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail/Long Tail 48″, Outside Rail |
AH75-OX-08-24TANDEM AXLE–75k–194 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail/Long Tail 48″, Outside RailAH75-OX-10-22TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail/Long Tail 48″, Outside RailAH75-OX-10-24TANDEM AXLE–75k–194 MODELS–10″ Main Frame; No Sub-Frame–Extendable Tail/Long Tail 48″, Outside RailAH75T-OR-08-22TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Outside Rollers, Outside Rail – Telescopic Lift CylindersAH75T-OR-10-22TANDEM AXLE–75k–174 MODELS–10″ Main Frame; No Sub-Frame–Outside Rollers, Outside Rail – Telescopic Lift CylindersAH75T-EX-08-22TANDEM AXLE–75k–174 MODELS–8″ Main Frame; 2″ Sub-Frame–Extendable Tail 80″, Outside Rail – Telescopic Lift CylindersAF-OR-174TANDEM AXLE–60k–174 MODELS–Outside Rollers, Outside Rail AF-OR-194TANDEM AXLE–60k–194 MODELS–Outside Rollers, Outside Rail AF-IO-174TANDEM AXLE–60k–174 MODELS–Inside/Outside RailAF-IO-194TANDEM AXLE–60k–194 MODELS–Inside/Outside RailAF-IX-174TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside/Outside RailAF-IX-194TANDEM AXLE–60k–194 MODELS–Extendable Tail 60″, Inside/Outside RailAF-SI-174TANDEM AXLE–60k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″AF-SI-186TANDEM AXLE–60k–186 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″AF-SI-194TANDEM AXLE–60k–194 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″AF-EX-174TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Outside RailAF-EX-194TANDEM AXLE–60k–194 MODELS–Extendable Tail 60″, Outside RailAF-OX-174TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 60″, Outside RailAF-OX-194TANDEM AXLE–60k–194 MODELS–Extendable Tail/Long Tail 60″, Outside RailAFCD-OR-22TANDEM AXLE–50k–174 MODELS–Canada Mount, Outside Rail w/ Dock Push off Option – No Outside RollersAFCD-OR-24TANDEM AXLE–40k–194 MODELS–Canada Mount, Outside Rail w/ Dock Push off Option – No Outside RollersAFWC-OR-174TANDEM AXLE–60k–174 MODELS–West Coast–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD RailAFWC-OR-194TANDEM AXLE–60k–194 MODELS–West Coast–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD RailAFWC-OX-194TANDEM AXLE–60k–194 MODELS–West Coast–Extendable Tail/Long Tail 60″, (3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD RailAF75-OR-194TANDEM AXLE–75k–194 MODELS–Outside Rollers, Outside RailAF75-IO-194TANDEM AXLE–75k–194 MODELS–Inside/Outside RailAF75-EX-194TANDEM AXLE–75k–194 MODELS–Extendable Tail 60″, Outside RailAF75-OR-174TANDEM AXLE–75k–174 MODELS–Outside Rollers, Outside RailAF75-IO-174TANDEM AXLE–75k–174 MODELS–Inside/Outside RailAF75-IX-174TANDEM AXLE–75k–174 MODELS–Extendable Tail 60″, Inside/Outside RailAF75-SI-174TANDEM AXLE–75k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″AF75-EX-174TANDEM AXLE–75k–174 MODELS–Extendable Tail 60″, Outside RailAF75-OX-174TANDEM AXLE–75k–174 MODELS–Extendable Tail/Long Tail 60″, Outside RailAFXC-OR-194TANDEM AXLE–60k–194 MODELS–Canada Unit-Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside Rail AFXC-IO-174TANDEM AXLE–60k–174 MODELS–Canada Unit-Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Inside/Outside Rail AFX-OR-174TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside RailAFX-OR-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside Rail AFX-IO-174TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside RailAFX-IO-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside RailAFX-IX-174TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside RailAFX-IX-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside RailAFX-IOX-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long 55″, Inside/Outside RailAFX-EX-174TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Outside RailAFX-EX-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Outside RailAFX-OX-174TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long Tail 60″, Outside RailAFX-OX-194TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long Tail 60″, Outside Rail
- Legacy (U-Series) “Outside Rail” (OR) Roll-Off Cable Hoists
- Legacy (U-Series) “Inside/Outside Rail” (IO) Roll-Off Cable Hoists
- Legacy (U-Series) “Extendable Tail” (EX) Roll-Off Cable Hoists
- Legacy (U-Series) “Long Extendable Tail” (OX) Roll-Off Cable Hoists
- Legacy (U-Series) “West Coast” (WC) Roll-Off Cable Hoist: U5WC-OR-174 -186 -194
- Canadian (OR) – “Outside Rail” Roll-Off Cable Hoist: C5-OR-194
- ACCURATE (AH-Series) “Heavy Duty” Roll-Off Cable Hoists: -08-22
- ACCURATE (AH-Series) “Heavy Duty” Roll-Off Cable Hoists: -10-22
- ACCURATE (AH-Series) “Heavy Duty” Roll-Off Cable Hoists: -08 & -10-24
- Above Frame (AF-SERIES) Roll-Off Cable Hoists
- Above Frame (AF75-SERIES) Roll-Off Cable Hoists
- Above Frame (AFX-SERIES) Roll-Off Cable Hoists
- Above Frame (AF-SERIES) Roll-Off Cable Hoist AF-SI
- Above Frame (AF-SERIES) Canadian “Dock Push Off” Roll-Off Cable Hoist AFCD
- Above Frame (AF-SERIES) “West Coast” Roll-Off Cable Hoist AFWC-OR-174
- Above Frame (AF-SERIES) “West Coast” Roll-Off Cable Hoist AFWC-OR-194
All material on this page referring to Galbreath Outside Rail (OR) including text, images, logos and pdfs, are owned by Galbreath, either through copyright or trademark, unless otherwise indicated.
Municipal Equipment, Inc. is an authorized Galbreath reseller.
