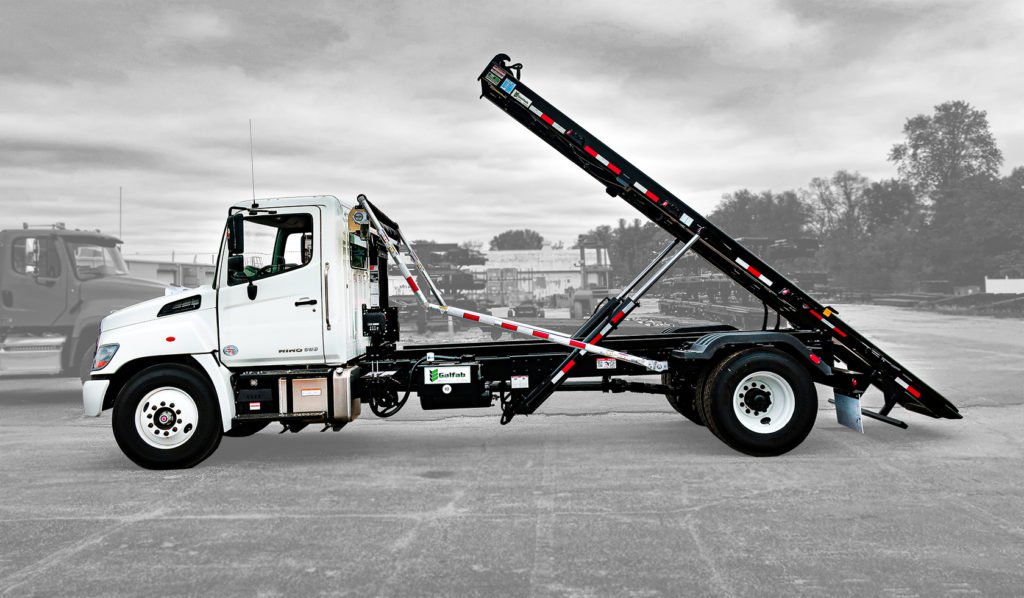

Galfab, Single Axle Outside Rail Hoist (OR20 Series)

All Galfab Single Axle roll-off hoist systems have outboard supported side rollers and are built in a jig for consistency and accuracy.

  • 8 x 4 x 3/8” Main Frame tube
  • 1” Spring Loaded Container Locks
  • 4 x 3 x 3/16” Sub Frame tubes for chassis CA up to 168″
  • 3 x 2 x ¼” Sub Frame tubes for chassis with a CA greater than 168″
  • All Working Points Greaseable
  • 2 1/2” Diameter Lower Lift Cylinder Shafts
  • 10” Diameter Cable Sheaves
  • 3/8 inch x 3 inch winch cylinder rod covers
  • 3 Outboard supported rollers per side
  • Container long sill supports on rear of hoist mainframe
  • Inside and Outside Controls
  • LED Lighting System
  • 20 gallon Hydraulic Reservoir with sight and temperature gauge for CA lengths up to 168″
  • 48 gallon Hydraulic Reservoir with sight and temperature gauge for CA lengths greater than 168″
  • 25 Micron Filtration
  • Hoist Up Alarm
  • Back Up Alarm
  • 5/8” cable with pear eye for CA lengths up to 168″
  • 7/8” cable with heavy duty swivel eye for CA lengths greater than 168″
  • Rigid DOT Bumper
  • “The Hooker” Hold On System
  • Ratchet Tie Down Straps
  • Auxiliary Stops
  • Work Lights
  • Behind Cab and Oversize Oil Tanks
  • Tool Boxes
  • Poly or Steel Fenders
  • Tarping Systems
  • Pintle Hook
  • Front Mount Pump
  • PTO
  • Drop Shaft
  • On-Board Scale Systems
  • Rear View Camera Systems
  • Additional outboard supported side rollers
  • Also available with an extendable tail
Model Rated Cap. CA Hoist Length Rear Hinge Diameter Main Frame Tube Upper Lift Shaft Sub Frame Tube Recommended Container Length
OR20124S046 20,000# 124” 196” 2” 8” 1 1/4” 4” 12’ – 16’
OR20138S054 20,000# 138” 227” 2” 8” 1 1/4” 4” 14’ – 16’
OR20156S054 20,000# 156” 245” 2” 8” 1 1/4” 4” 14’ – 16’
OR20168S066 20,000# 168” 257” 2” 8” 1 1/4” 4” 16’ – 20’
OR20187S066 20,000# 187” 276” 2” 8” 1 1/4” 4” 18’ – 22’
