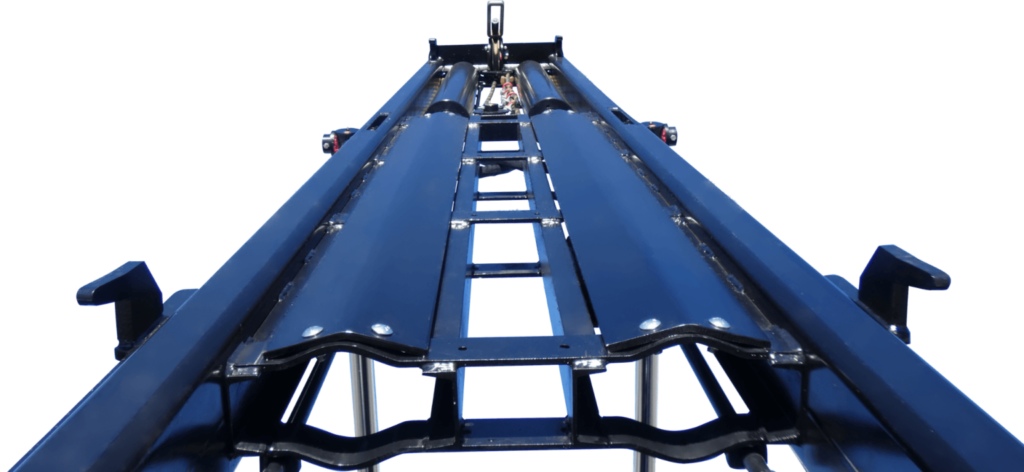

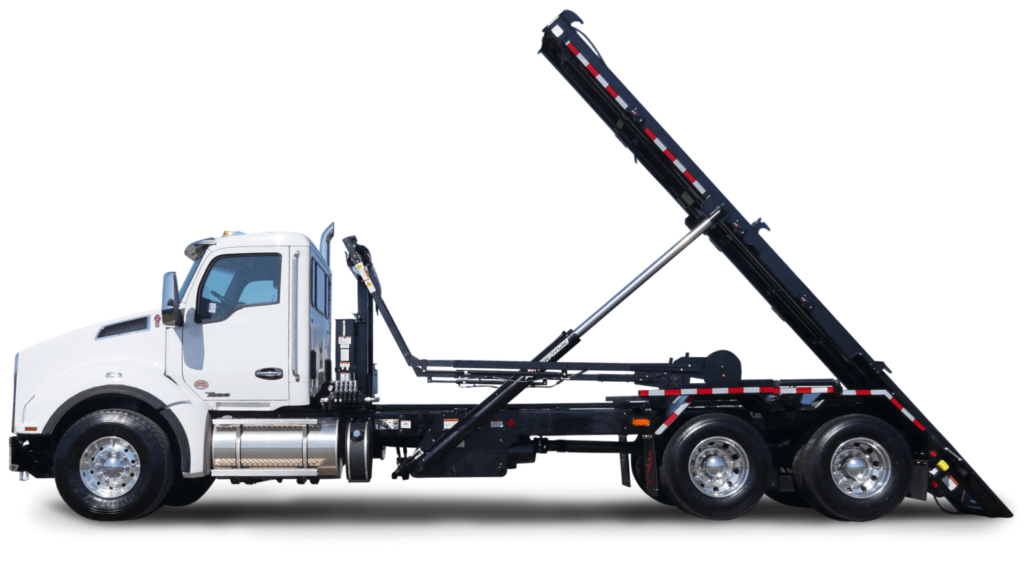

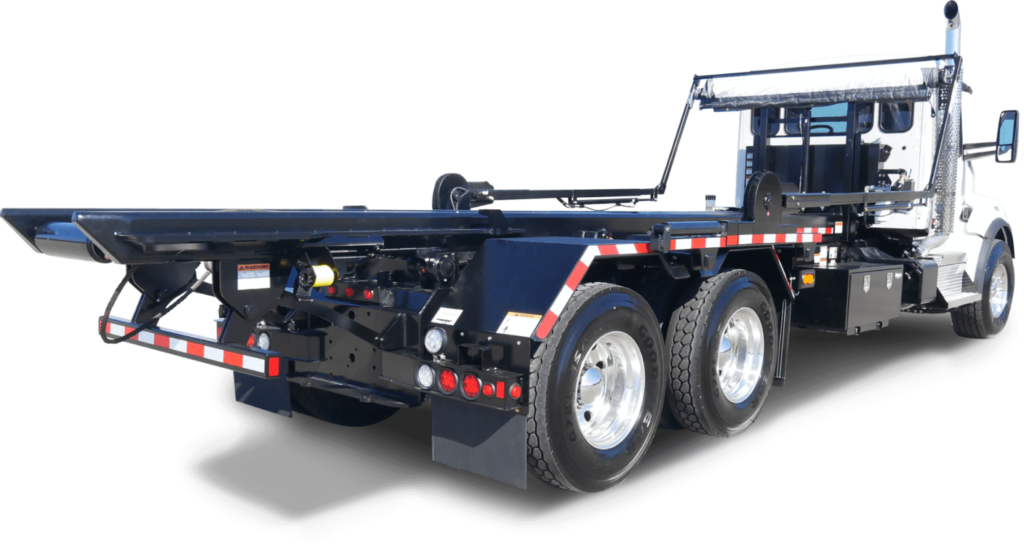

Pac-Mac® Roll-Off Truck

The Pac-Mac Roll-Off offers superior versatility, maneuverability, and value. Pac-Mac sets the standard in the performance driven fleets in the waste industry. (Patent pending)

  • 60,000 lbs. or 75,000 lbs. capacity
  • For outside rail containers up to 22′ long x 8′ tall
  • Automatic roller lock
  • Hydraulic tank located at the back of the cab for improved cooling, improved supply to pump, and stays cleaner.
  • Spin-on oil filter, spin-on breather, and sight glass with temperature gauge.
  • Hydraulic pressure gauge
  • Sectional manual control valve outside of cab.
  • Hol-Mac reverse-mounted 6″ lift cylinders. 7″ reeving cylinders. Made in USA
  • Sleeved hoses for protection.
  • Hoist controls inside the cab on a swing-away control tower *Patent Pending
  • Rigid rear container hold downs.
  • Sliding rear strap winch hold downs.
  • Steel line plumbing reduces rubber hoses to a minimum. *Patent Pending
  • 10″ cable sheaves with 2-1/2″ pins.
  • 4″ O.D. double-shear heavy duty side rollers with replaceable pins.
  • Auto upward folding mechanical ICC Bumper. Stowable for trailering.
  • Pintle-ready hitch rear attachment point.
  • Dual safety props for maintenance.
  • Dual tone back-up alarm and hoist up alarm with signal light in cab.
  • DOT approved recessed LED lighting and reflectors.
  • Mid-body LED turn signals.
  • High-mounted license plate bracket.
  • Rear camera guard. (rear camera sold separately)
  • Heavy duty cable end storage.
  • Bolt-on replaceable steel fenders with hydraulic guard line. *Patent Pending
  • Replaceable bolt-on 8″ wide x 1/2″ thick rear sheave guards.
  • 49-degree tilt angle.
  • Mud flaps front and rear.
  • All lube fittings are accessible from ground level.
  • Wiring runs through a full-length steel conduit.
  • Integrated arm-type tarper.
  • Fold-down auxiliary front stops for short containers.
  • Two work lights mounted on rear light boxes.
  • Steel toolbox 18″ x 18″ x 48″ left, right, or both.
  • Bolt-on On-board Scale kit. No modifications required.
  • Rear camera guard (rear camera sold separately)
  • On-board scale options: scale readouts printer and camera monitor.

Hoist rated capacity

  • 60,000 lbs. or 75,000 lbs.

Main Frame

  • 8″ x 4″ x 1/2″ A500 C Tubing

Sub Frame

  • 4″ x 2″ x 1/4″ A500 C Tubing

Front Stop

  • 1-1/2″ plate

Container lock

  • Automatic spring loaded

Lift cylinder pins

  • 2-1/2″ solid

Rear hinge pins

  • 3″ solid

Cable

  • 7/8″

Cable sheaves

  • 10″ O.D. bronze-bushed 2.5″ I.D.

Cable anchor

  • 4 forged cable clamps

Cable end

  • Steel casting

Rear hold down

  • 1″ plate located for std. containers

Middle hold down

  • 3/4″ plate

Lift cylinders

  • 6″ x 72″ double acting

Reeving cylinders

  • 7″ x 79.5″ double acting

Direct mount pump

  • Gear type 35 gpm at 1500 rpm

Operating pressure

  • 1850 psi

Hydraulic valve

  • 2 spool 45 gpm or 5 spool for use with tarper.

Inside Controls

  • Swing-away console with pneumatic levers

Hoise-up alarm

  • Hi-lo audible alarm at rear. Flashing red lamp and buzzer in cab.

Hydraulic reservoir

  • 50 gallon behind cab

Filtration

  • 10 micron filter, 100 mesh suction screen, 10 micron breather.

Outside rollers

  • 4″ O.D. double shear with bronze bushing and replaceable pins.

Maintenance props

  • Two, integrated

I.C.C. Bumper

  • Mechanical forward-folding. Stowable for trailer clearance.

Container length

  • Up to 22′

Approximate weight

  • 6,700 lbs (Hoist only, without options)
