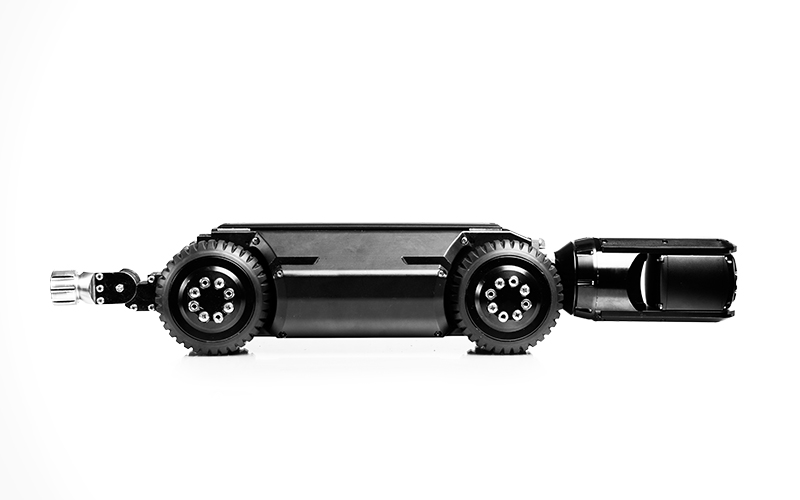

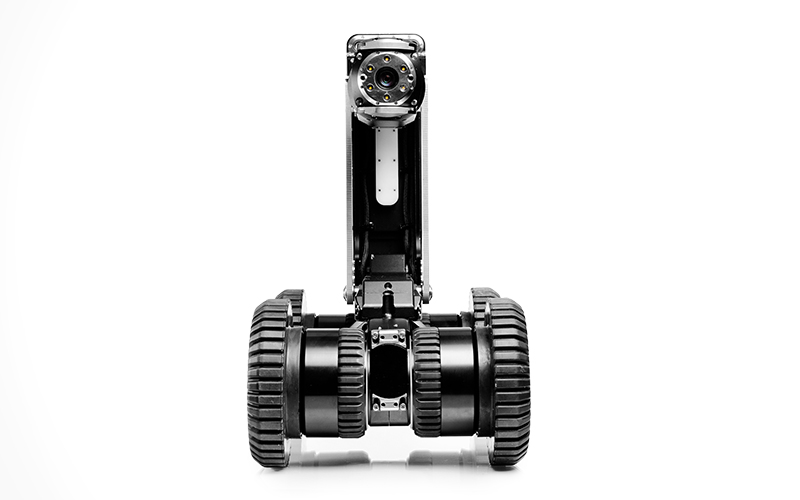

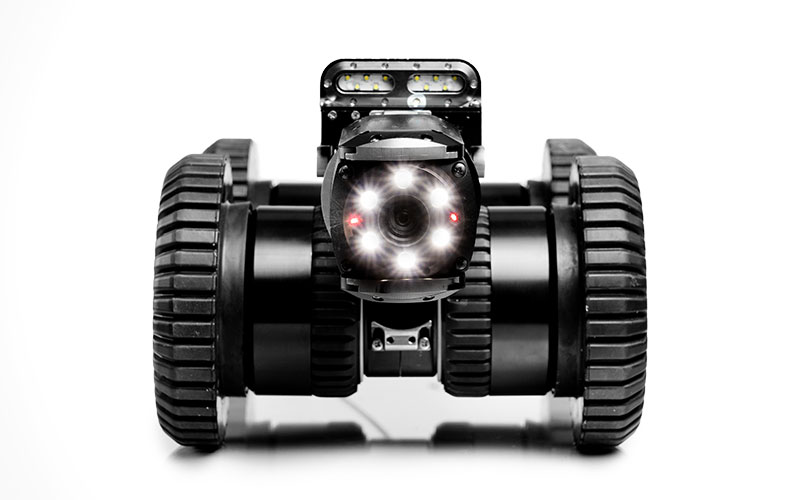

Pipe Trekker A-200

​The Trenchless industry’s first truly portable, battery-operated pipe inspection crawler system

Utilizing over a decade of design principles from building underwater robotics, our pipe crawlers are built to outlast and outperform. Constructed of machined aluminum and steel alloy, Pipe Trekker’s rugged crawler configurations get you more time in the field, and less time in the shop. Our crawlers are piloted through extremely intuitive controller systems, requiring minimal training before an operator can comfortably deploy. Unmatched portability, versatility, and accessibility allows for limitless applications of pipe cleaning, lining, or televising crews rather than relying on a dedicated TV truck crew for all inspections.

  • Width: 6” (150mm) – 12.2” (310mm)
  • Height: 5.5” (140mm) – 20.6” (523mm)
  • Length: 28.2” (716mm) to 29.5” (749mm)
  • Weight (in air): Up to 64.6 lbs (29.2 kg)
  • Materials: Stainless Steel, Machined Aluminum, Sapphire Lens Cover
  • Depth Rating: 50m (164’) Water Depth
  • Minimum Diameter: 8” (200mm)
  • Maximum Diameter (with Camera Head Centered): 36” (900mm)
  • Operating Temperature: -5°C – 40°C (23°F – 104°F)
  • Speed: Up to 12m/min
  • Warranty: 1 Year – Parts and Labor (optional 2-3 years)
  • Sensors: Incline, Roll, Leak, Pan/Tilt, Distance Counter
  • Transmitter: Sonde
  • Deployment: Lift brackers on side, lift points at front and back
  • System Voltage: 19.2 VDC, LiFe 6000 mAh
  • Battery Run Time: Up to 5 Hours
  • Hybrid Power Option Available (operate continuously)
  • Hybrid Power: 75 VDC on Tether via AC input through Automatic Reel
  • Drives: Magnetically Coupled, 2 x DC Gear Motors with Gear Train
  • Steering: Skid Style
  • Pull Force: 130 lbs (580 N)
  • 2-3 Spare Ethernet Ports
  • Max Length Available: 310m (1,100’)
  • Diameter: 6.5mm
  • Break Strength: 1600 lbs (725 kg)
  • Conductors: 1 Twisted Pair, Copper
  • Termination: Epoxy, with Strain Relief
  • Jacket Material: Polyurethane
  • Resolution: 1080p / 2MP
  • Pan: 360 Degrees Continuous
  • Tilt: +/- 140 Degrees (280 Degrees Total)
  • Zoom: 10x Optical, 120x Digital
  • Focus: Auto or Manual
  • Exposure: Auto or Manual
  • Lights: 900 Lumens; Auxiliary: 1500 Lumens
  • Weatherproof, Splashproof
  • Display: 7” LCD
  • Joysticks: Hall Effect
  • Outputs: HDMI, Ethernet, USB, SD
  • Battery Life: Up to 5 Hours / Charge during operation for continuous
  • Software: Bridge, WinCan or other software optional integrations
