New Way Sidewinder Arm Assembly Outer Section Horizontal – 127173
New Way Sidewinder Arm Assembly Outer Section Horizontal – 127173
1.
New Way CLAMP, WELD MNT, .5 TWIN - 101021
Add to Quote
2.
New Way CYL, 2.0X54.0X64.79, ARM, HORZ, ROSENBOOM 100EN0188 - 118612
Add to Quote
3.
New Way PROX, 24" LEAD, 30MM range, FL - 120780
Add to Quote
4.
New Way WLDT, HORZ, MAST, MAIN, AMSL - 121961
Add to Quote
5.
New Way WLDT, BOLT ON ARM VALVE PLATE, ASL - 126665
Add to Quote
6.
New Way CONTROLLER,DOT_PDU,CAN BUS - 126699
Add to Quote
7.
New Way NUT-HEX-LOCK-REV, .375-16, ZN - 100493
Add to Quote
8.
New Way NUT-HEX-LOCK-REV, .5-13, ZN - 100499
Add to Quote
9.
New Way BOLT-HHCS, .375-16X1.5, GRS - 100804
Add to Quote
10.
New Way NUT-HEX-LOCK-REV, .25-20, ZN - 101970
Add to Quote
11.
New Way BOLT-HHCS, .375-16X1.25,GR 5,ZN - 102942
Add to Quote
12.
New Way NUT-HEX, NYLOK, .25-20, ZN - 104653
Add to Quote
13.
New Way NUT, HEX, NYLOCK, .375-16, GR2, ZN - 104654
Add to Quote
14.
New Way WASHER, FLAT, .25, ZN - 104666
Add to Quote
15.
New Way WASHER, FLAT, .375, ZN - 104667
Add to Quote
16.
New Way WASHER, FLAT, .75, THRU HARD, ZN-CR - 107081
Add to Quote
17.
New Way ZERK, GREASE, .125 NPT, STR - 107154
Add to Quote
18.
New Way BOLT-HHCS, .375-16X1, GRS, ZINC - 112392
Add to Quote
19.
New Way BOLT-HHCS, .25-20X1 GR 5, ZN - 119450
Add to Quote
20.
New Way BOLT, HHCS, .375-16X2, GR5, ZN - 120094
Add to Quote
21.
New Way BRKT, MTG, PROX, 30MM - 120860
Add to Quote
22.
New Way BOLT, HHCS, .5-13X1.75, GR5, ZN - 120944
Add to Quote
23.
New Way BOLT, HHCS, .5-13X2.0, GRS - 121464
Add to Quote
24.
New Way BOLT, HHCS, .25-20X.5, GRS - 121574
Add to Quote
25.
New Way UHMW, HORZ, MAST, WEAR BLOCK - 122016
Add to Quote
26.
New Way NUT, TEE NUT, .5-13 - 122019
Add to Quote
27.
New Way BUSHING, INNER, HOSE CARRIER - 122034
Add to Quote
28.
New Way PLATE, BOLT RETAINER, LARGE - 122042
Add to Quote
29.
New Way PLATE, BULKHEAD FTG. RETAINER - 122055
Add to Quote
30.
New Way UHMW, HOSE CARRIER, TOP, AMSL - 122059
Add to Quote
31.
New Way UHMW, HOSE CARRIER, BTM, AMSL - 122062
Add to Quote
32.
New Way SHAFT, MAST ROLLER, AMSL - 122069
Add to Quote
33.
New Way BEARING, HORZ, MAST, ROLLER, A - 122072
Add to Quote
34.
New Way PLATE, ROLLER BLOCK, BOTTOM - 122076
Add to Quote
35.
New Way GUARD, HORZ, MAST, TOP, AMSL - 122077
Add to Quote
36.
New Way SHAFT, HORZ, EXT CYL, FRONT - 122079
Add to Quote
37.
New Way WASHER-FLAT, .5, ZN - 122196
Add to Quote
38.
New Way SHAFT, CYL PIN, ASL - 122343
Add to Quote
39.
New Way SNAP RING, 4.424, AMSL - 122450
Add to Quote
40.
New Way LIGHT ROLLER, AMSL - 122461
Add to Quote
41.
New Way BUSHING, LIGHT ROLLER, AMSL - 122462
Add to Quote
42.
New Way BOLT-SFS, .75-10X3.5, ZN - 122585
Add to Quote
43.
New Way NUT-NYLOCK, .75-10, GR8, YZN - 122607
Add to Quote
44.
New Way BOL T-HHCS, .75-10X2.5 GR8 ZN - 122623
Add to Quote
45.
New Way BOLT-HHCS, .25-20X3.5, GRS, ZN - 122626
Add to Quote
46.
New Way GUARD, HORZ, INNER, AMSL - 122631
Add to Quote
47.
New Way BOLT-HHCS, .5-13 X 2.75, GRS, ZN - 123205
Add to Quote
48.
New Way BOLT-HHCS, .5-13X1.25, GRS, ZN - 123765
Add to Quote
49.
New Way FORMED, P CLAMP MOUNT, ARM, ASL - 125370
Add to Quote
50.
New Way FORMED, ARM VALVE GUSSET, BOLT ON, ASL - 126196
Add to Quote
51.
New Way NUT-HEX, NYLOCK, .4375-14, GRS, ZN - 126280
Add to Quote
52.
New Way PLATE, HORZ, END CAP, ASL - 126663
Add to Quote
53.
New Way FORMED, CONTROLLER MNT, CAN BUS - 128857
Add to Quote
SKU:
127173 (3-1-5)
Categories:
Refuse/Waste
,
Side Loader
Tag:
New Way
Description
Description

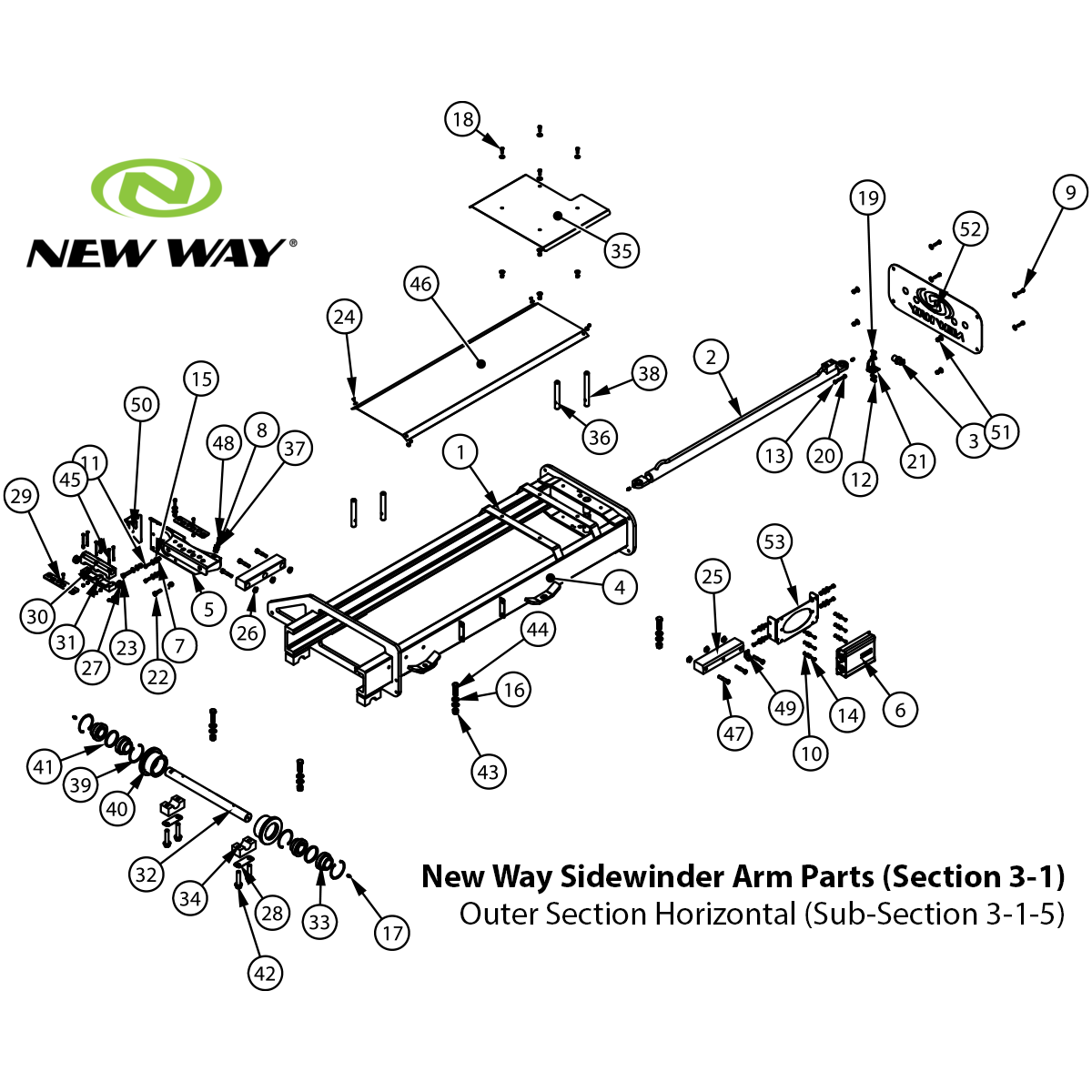

Reference Section 3-1-5: Arm Parts, Outer Section Horizontal
Manual #129990
