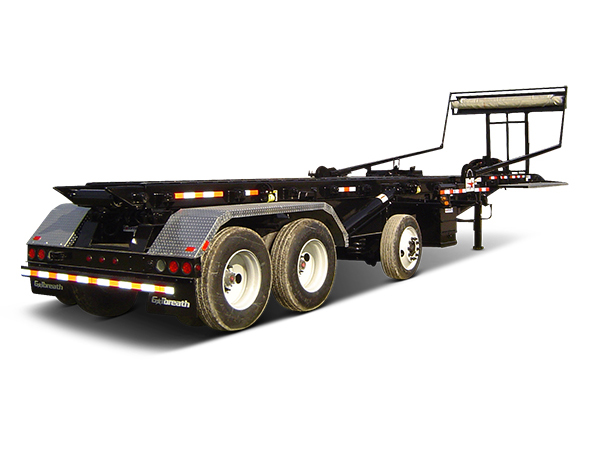

Pioneer Rack ‘N Pinion® Strong Arm RP4500SATR

Rack ‘n Pinion® Strong Arm systems utilize rack and pinion technology for controlled side arm movement. A hydraulic cylinder moves a rack gear forward and backward. The rack gear is mated with a pinion gear attached to the base of the pivot arms. This arrangement creates a mechanical advantage that provides continuous control over speed and precise synchronization of the pivot arms as they cover and uncover the container.  Look for the distinctive tombstone, a symbol of Pioneer’s Rack ‘n Pinion tarping system’s industry-leading quality for over a decade.

  • Applications: Cable hoist roll-off trailers
  • Container style/size:  Up to 32 foot containers
  • Standard tarp:  Heavy-duty mesh

  • Tarping system with pivot assembly for consistently precise tarp movement
  • Adjustable gantry moves vertically from 60″ to 96″ (SATR)
  • Roller mounted on gantry, reducing stress on framework
  • Spring-loaded roller assembly
  • Fixed length unbreakable pivot arms
  • Industry-leading 5-year non-prorated warranty covers the entire system (excludes tarp)
  • Features Pioneer’s distinctive tombstone

All material on this page referring to Pioneer Rack ‘N Pinion® Strong Arm RP4500SATR including text, images, logos and pdfs, are owned by Pioneer, either through copyright or trademark, unless otherwise indicated.

Municipal Equipment, Inc. is an authorized Pioneer reseller.
